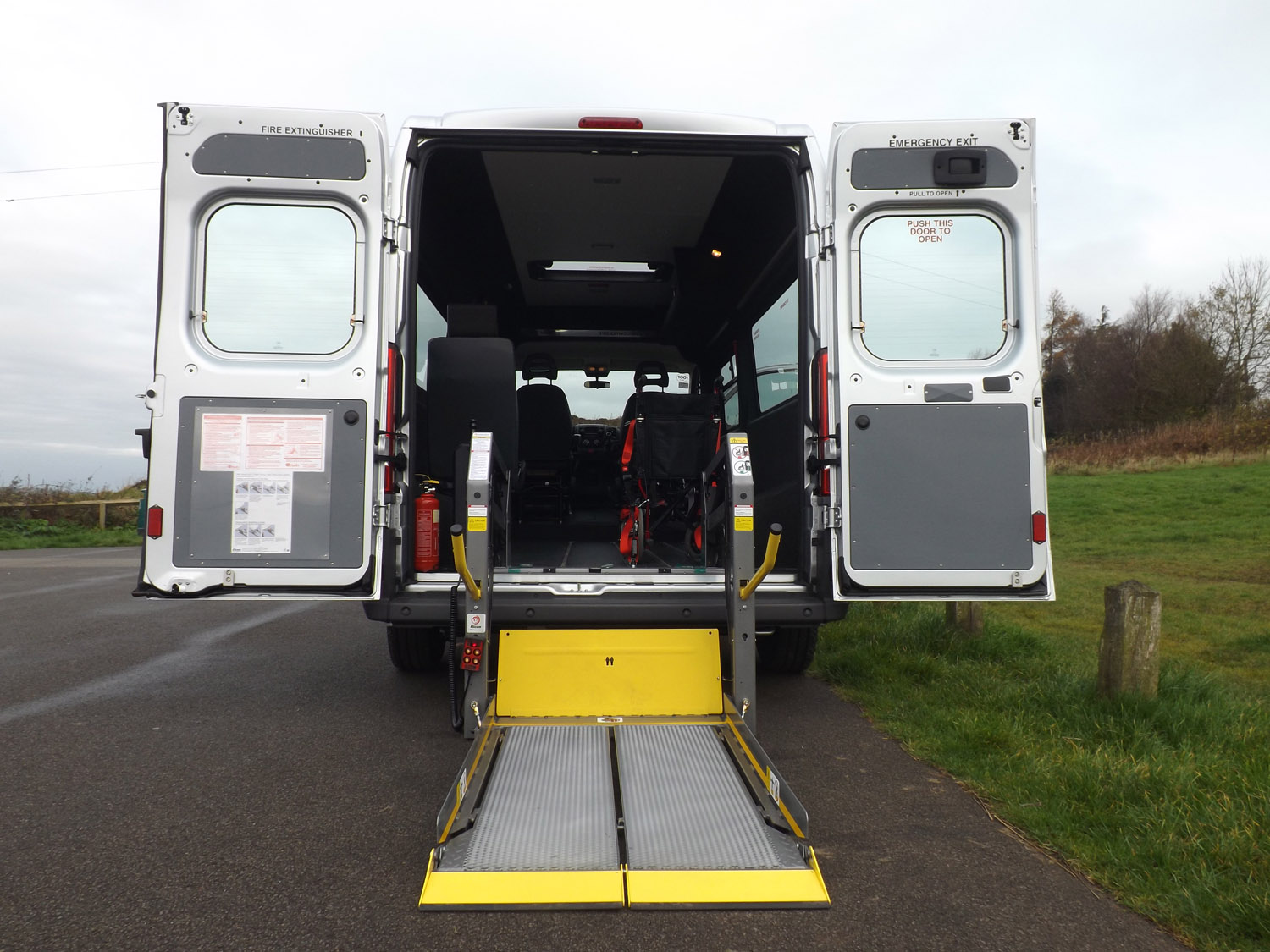

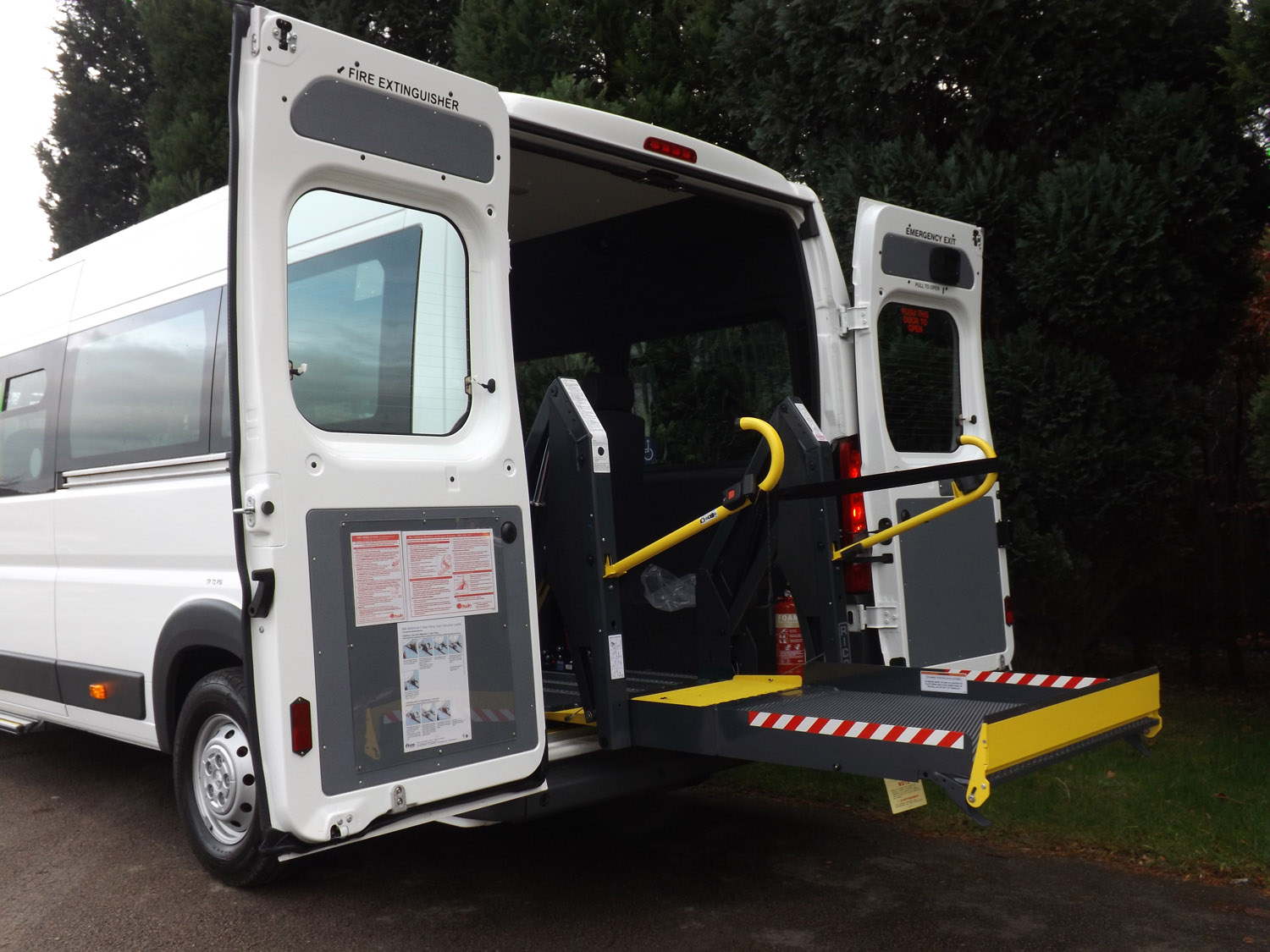

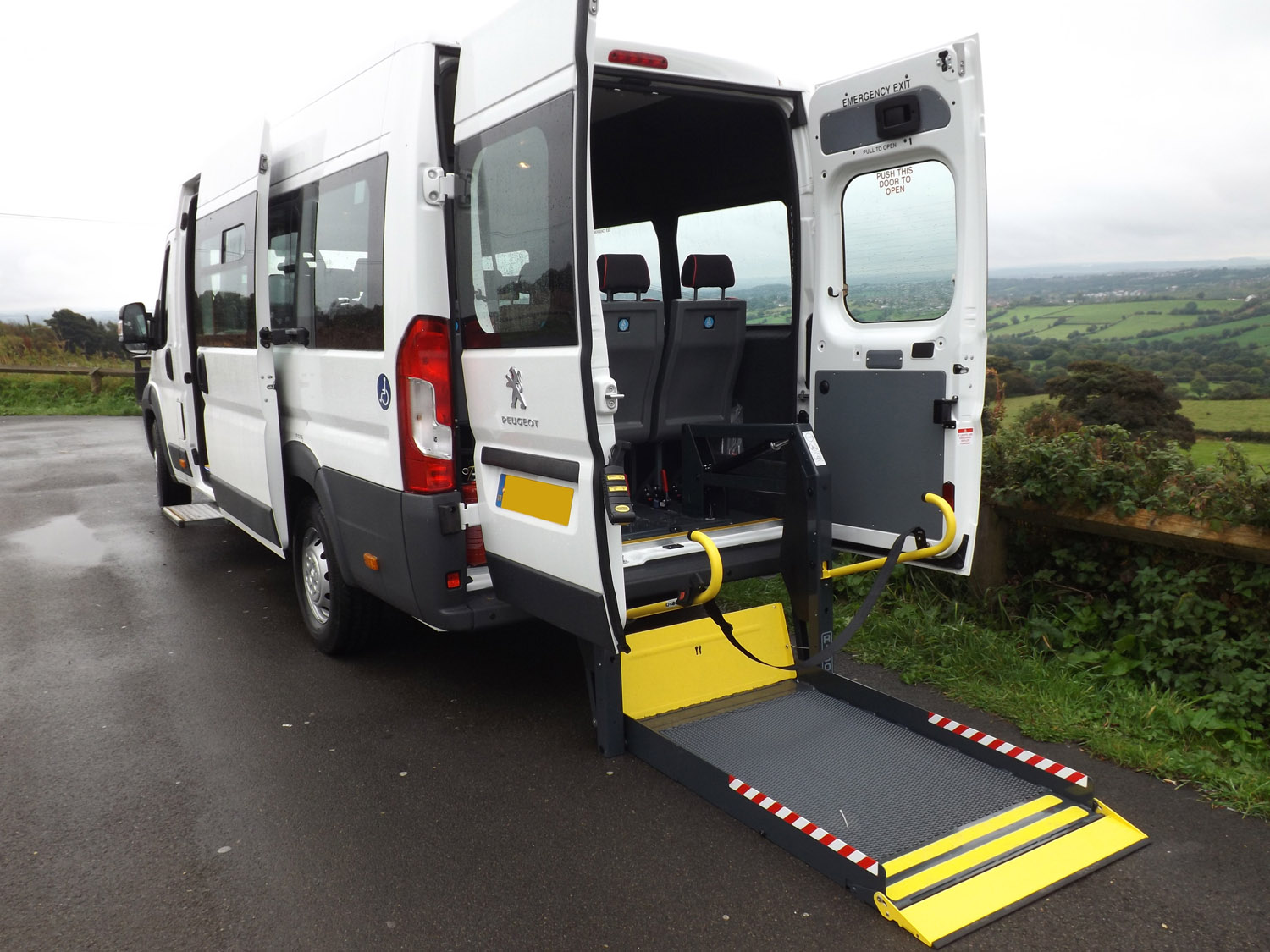

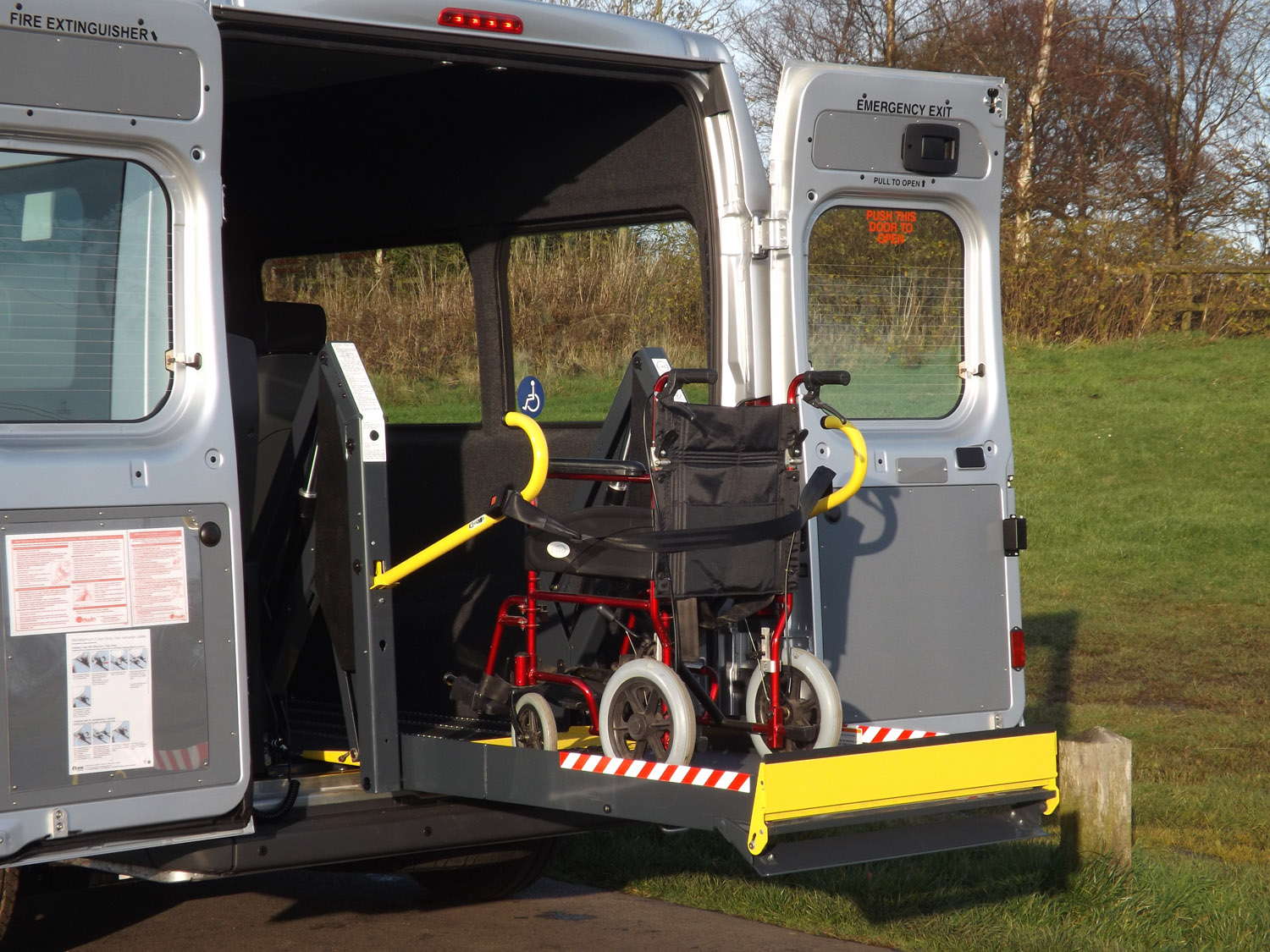

Solid Platform Passenger Lifts
A space-efficient lift for a new class of vehicles. Vapor Ricon Solid platform passenger lifts elevate the industry standard for excellence
Compact and simple to operate, the S-Series solid platform features the security of the industry-leading Ricon Safety Zone.
Performance, reliability and value
Ricon S-Series wheelchair lifts formed the catalyst, setting the industry standard for performance, value and ease of use. These innovative design features include:
- Unparalleled interior access
- Non-intrusive space-saving footprint
- Easy operation and maintenance
- Full after sales service package
- Providers to Motability and Local Authority Schemes
Standard Features

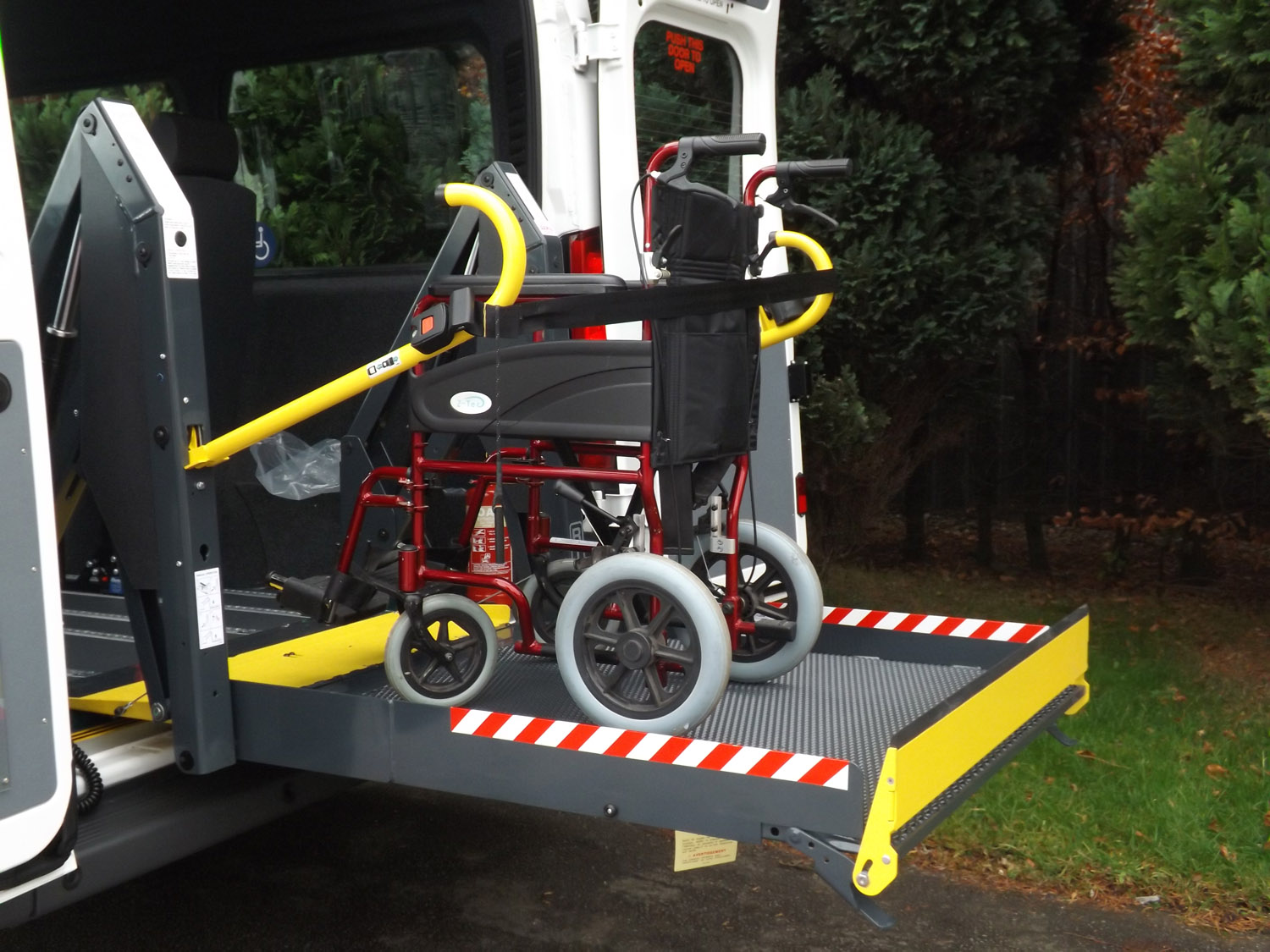

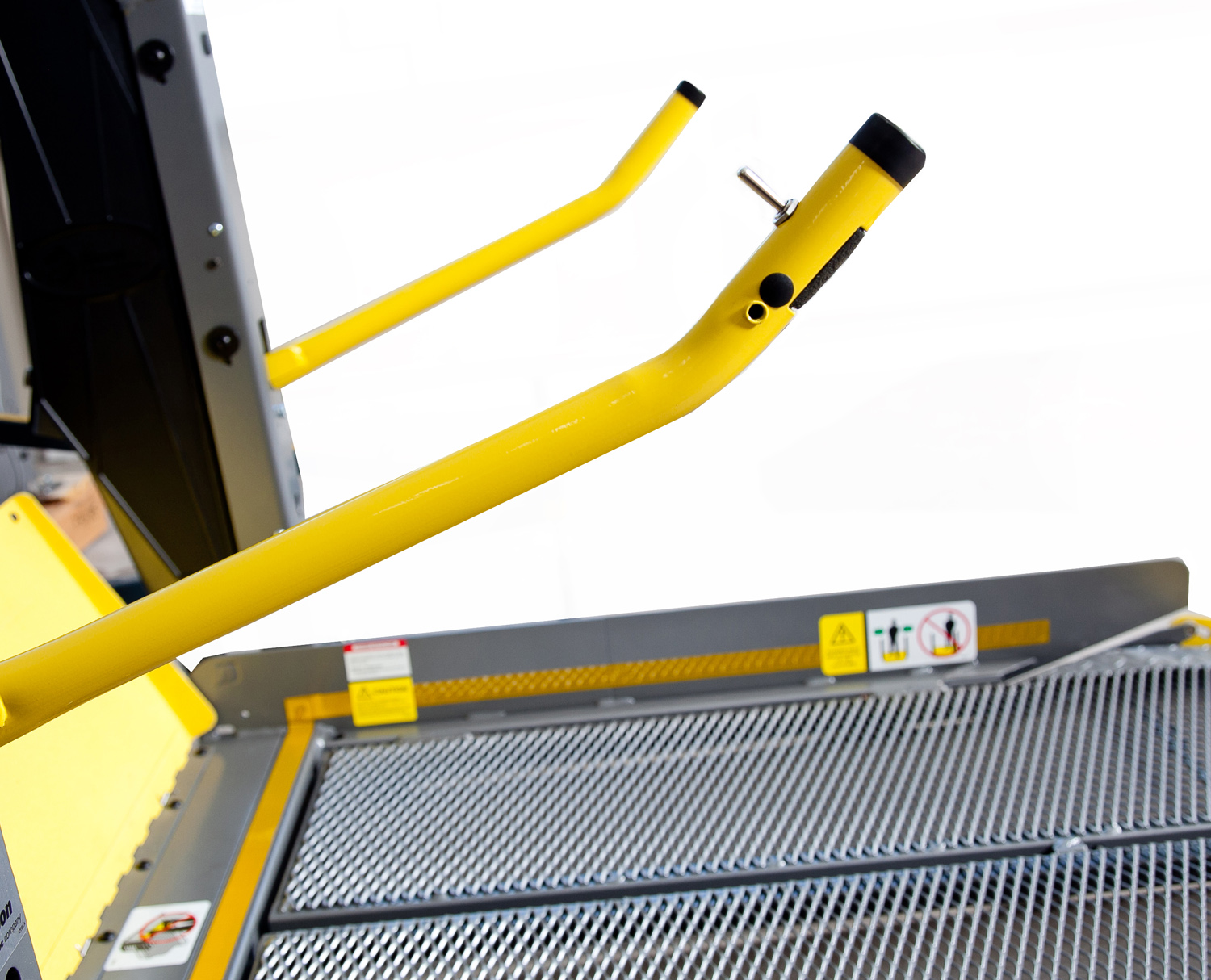

- Industry-leading Ricon Safety Zone: Combines front and rear rollstops and handrails, secures passengers during lift operation

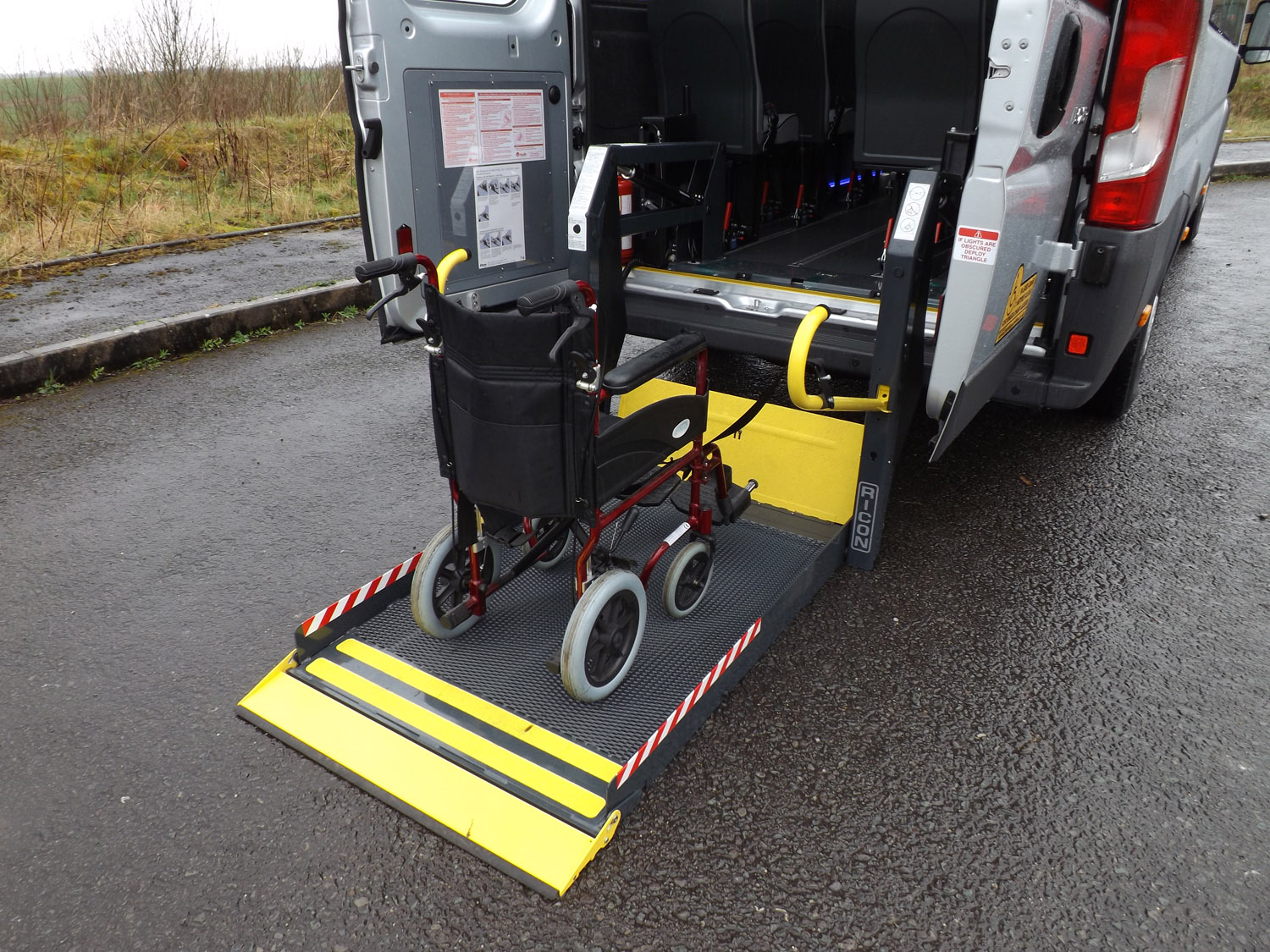

- Simple and reliable operation provides convenient vehicle access for wheelchairs and scooters
- Powerful hydraulic pump assures smooth, stable operation
- Pre-lubricated bearings at all major pivot points for long-term durability
- All steel construction with high gloss, polyester powder coat finish resists corrosion
- Individual Vehicle Approval (IVA) compliant lifts available
- Standard lifts rated at 350kg
- Bariatric lifts available at 500kg
- ADA regulation compliant
- Available with built in alarms and ski wheels
- 5-year Limited Warranty
- Standard 12V power supply
Optional Features
-

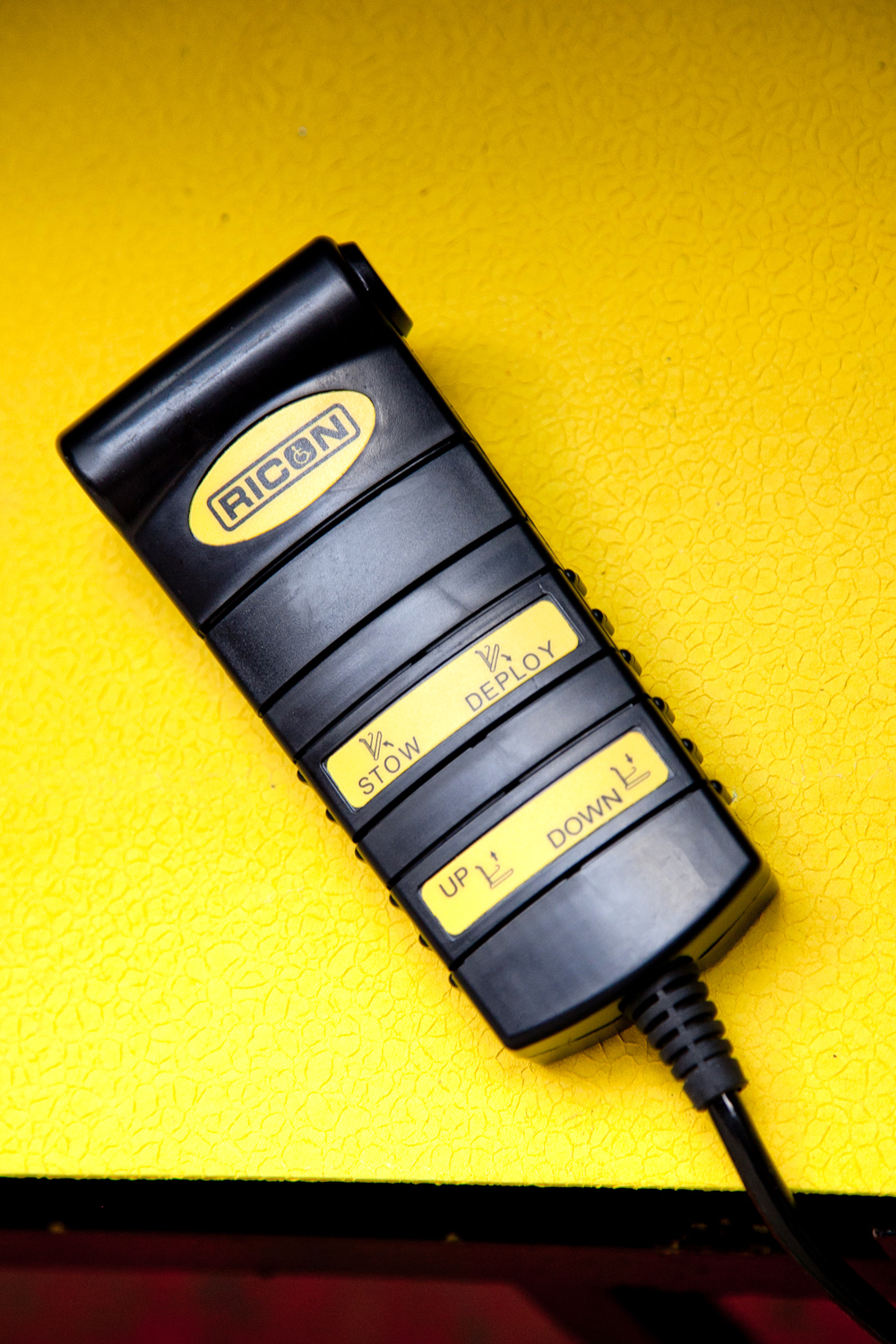

Top-mounted magnetic hand control pendant
With multiple stow points and convenient coiled cord. Can be attached directly to the frame when lift is stowed or operating
-
Certificate of initial fitment (COIF) emergency release
Optional COIF release mechanism complies with schedule 6 of the 1986 construction and use regulations allowing full lift deployment for rapid vehicle evacuation in the event of an emergency
-

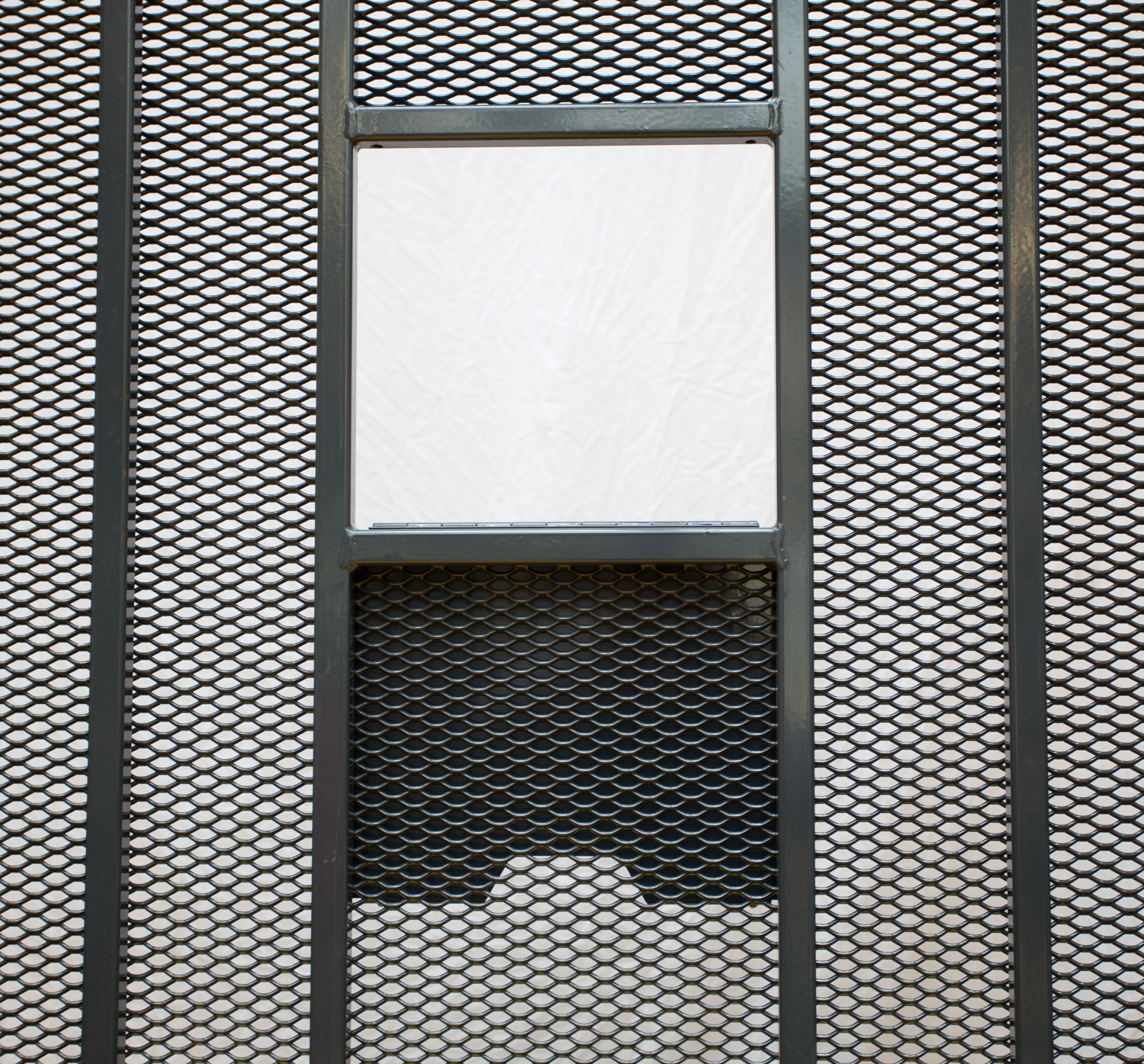

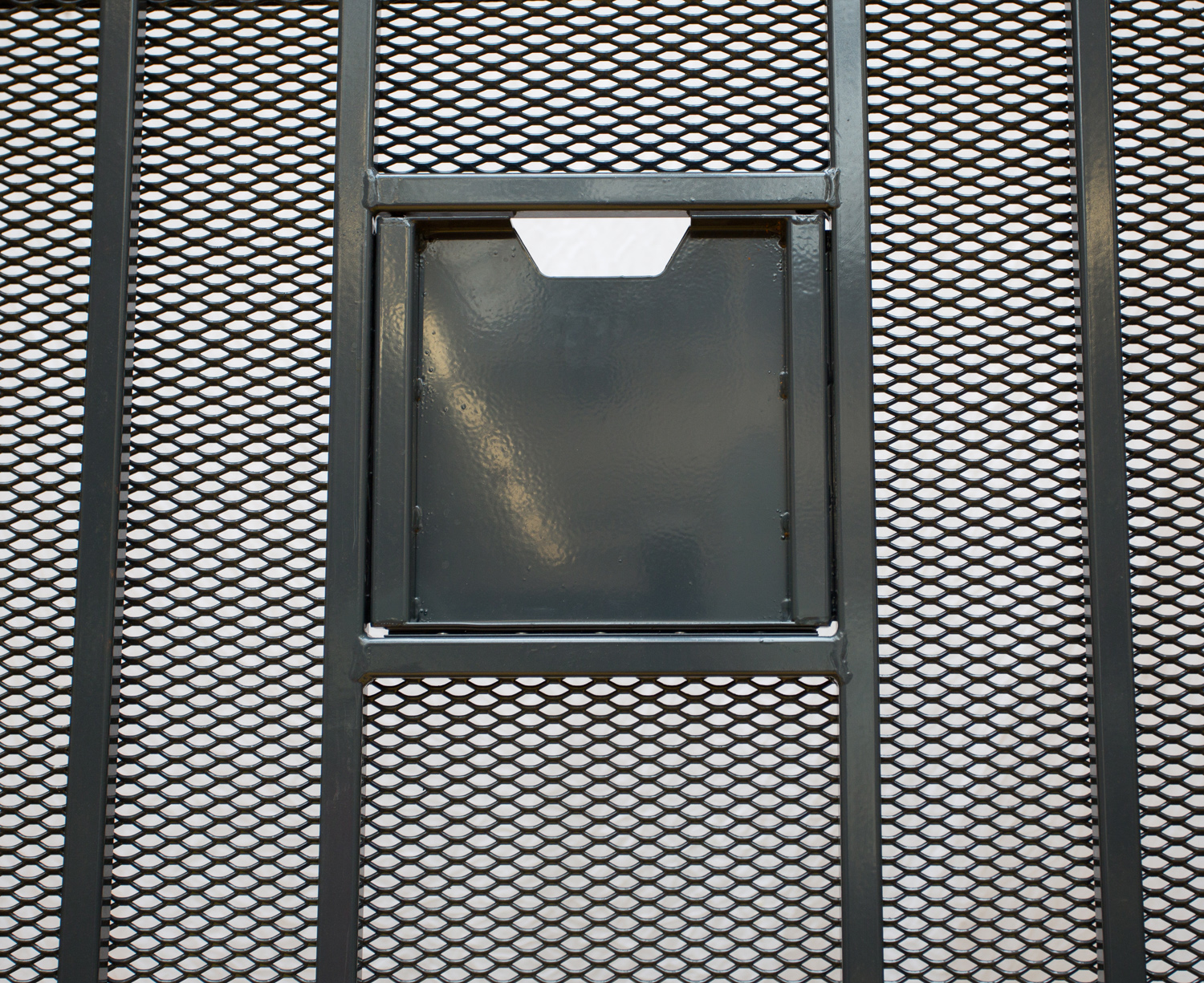

Slide-off pump cover with “secur-stor” backup tool storage
Easy access with no bolts to remove, simply push the top-mounted cover release and pull up for total access to the manual backup tool, pump and electrical components
-

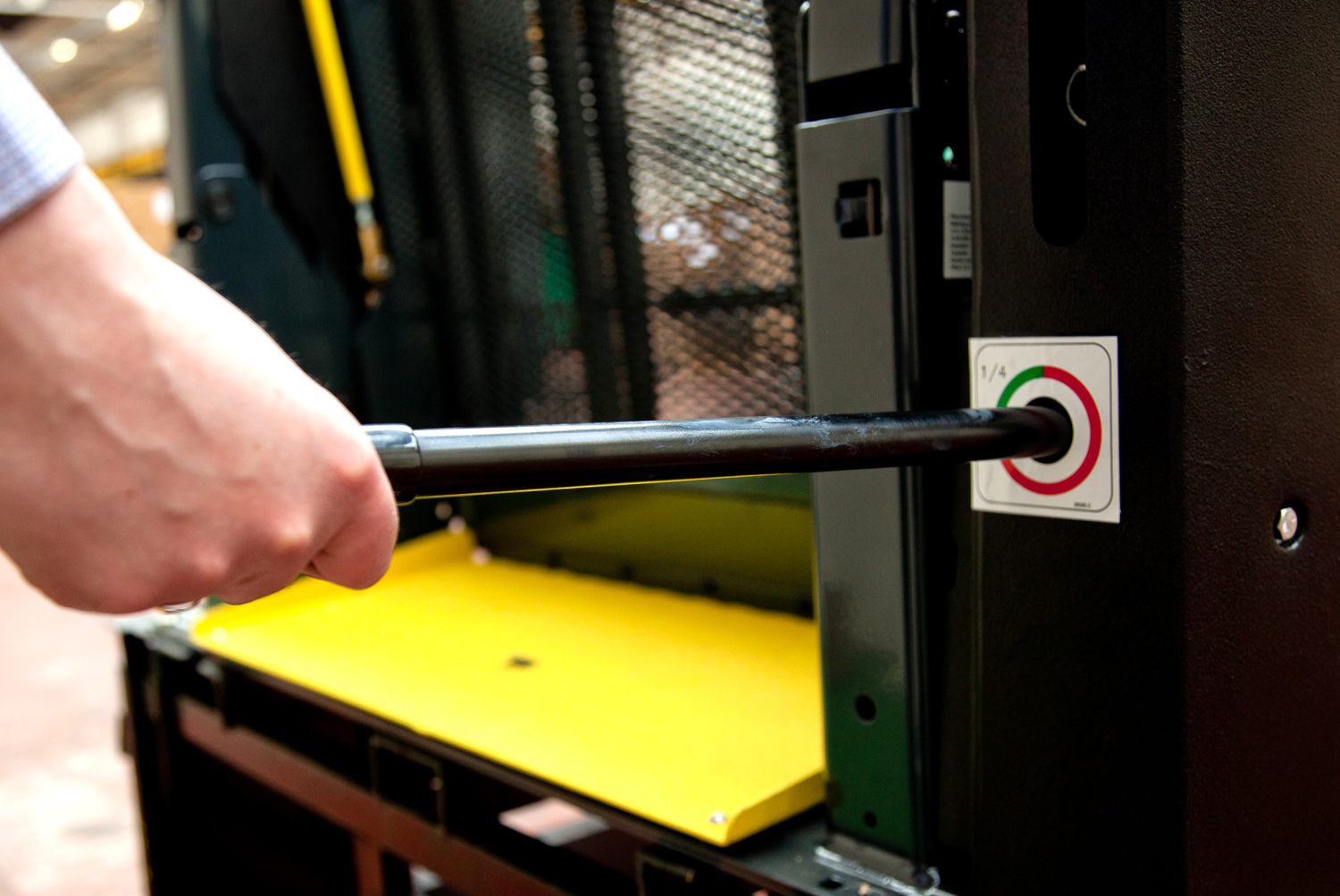

Manual backup system
Hand pump mechanism provides manual lift operation in case of power loss
-
Plug and play interface
For door openers, remote control. CYCLE COUNTER – provides for more accurate information for service and maintenance teams
-

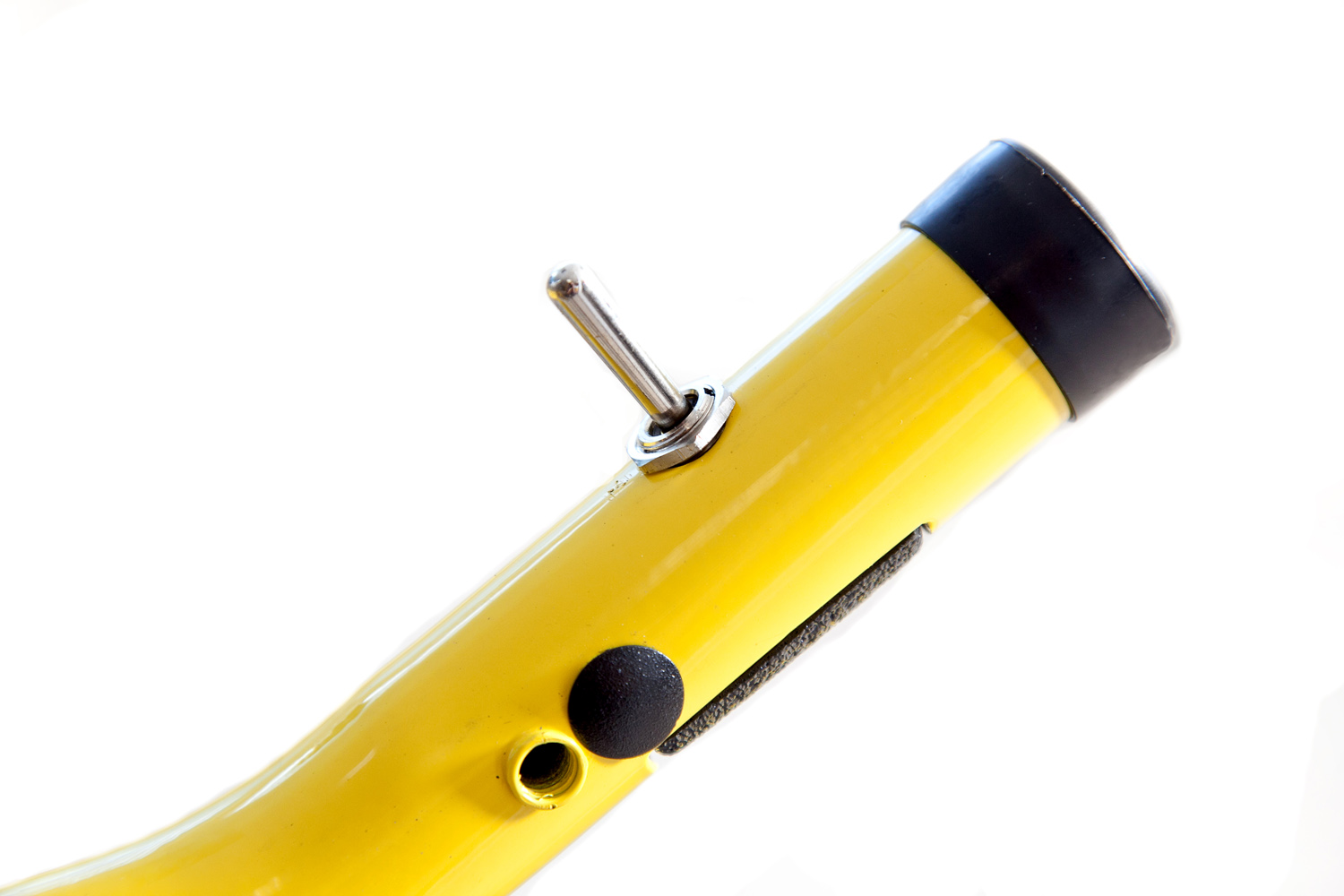

Occupant control switch
Optional control switch allows occupant to lower or raise the lift platform
-

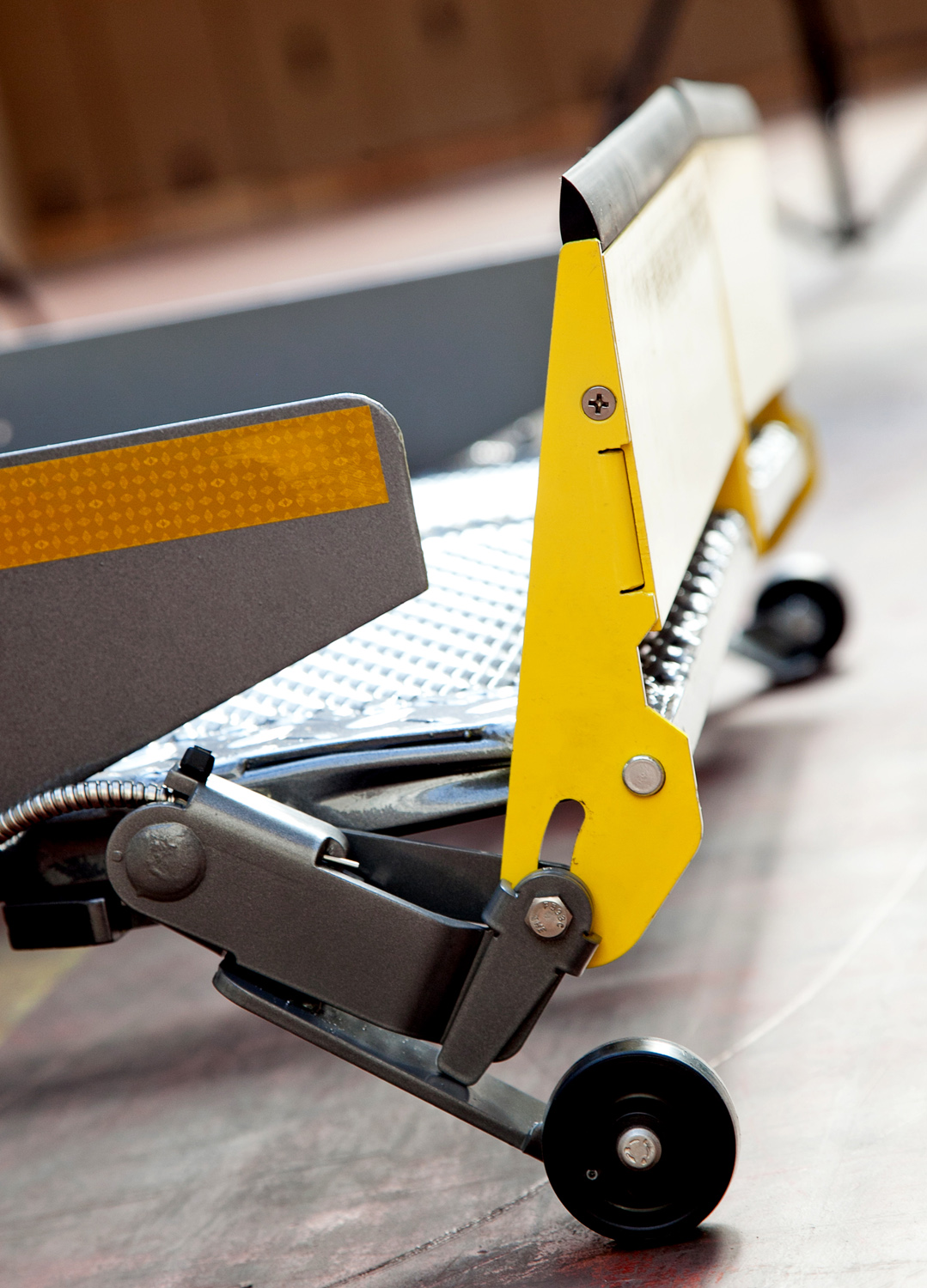

Automatic inboard rollstop
Features quiet patented Sto-LocTM self-adjusting mechanism with built in fail safe features
-
Outer rollstop switch
Limits platform travel if not locked into position
-
Tighter mesh non skid platform
For greater rigidity and improved performance
-
Antimicrobial coating
To handrails can be provided as an optional extra
-
Range of lift weights
Between 154-168Kg
-
24V power supply
-
Optional lights
